Community Housing Solutions
When designing community housing projects, meeting specific requirements such as privacy screening, driveway safety and balustrade requirements is essential.
To streamline product selection, we’ve developed an interactive webpage that helps users find products that are fit for purpose while meeting budget expectations.
Watch our video on how to use this site here.
1. Balustrade
DuraPanel Delta 35 Balustrade
For some applications extra strength is required. We have design engineered the Delta 35 safety fencing with extra reinforcement to comply with F4 Safety From Falling Compliance, when installed to manufacturers specifications.
Rakeable panel available (rakes up to 37°).
Indicative lineal metre price*:
From $130.12
Includes posts and associated fixings.
- F4 compliant
- Producer Statement available for download
- Custom gates or panels available to be fabricated
- Rakeable panel available up to 37°
Panel Height: 1200mm
Panel Length: 2400mm
Horizontal Rails: 40x40mm
Vertical Bars: 19x19mm
Bar Spacing: 91mm
Post Size: 65x65mm
Rakeable panel available (rakes up to 37°)
Colours:
Black
DuraPanel Titan Balustrade
Compliant Fall Restraint aluminium fencing at 2400mm posts centre and suitable for wide range of applications.
Titan has been designed to provide a simple, effective system for fall from height protection. A stylish-strong solution, the simple lines of the Titan blend in seamlessly with any landscape.
Rakeable panel available (rakes up to 40°).
Indicative lineal metre price*:
From $144.55
Includes posts and associated fixings.
- Square verticals and rectangle horizontals for additional strength
- Producer Statement available for download
- Stocked gates available
- Custom gates or panels available to be fabricated
- To be used with 65x65mm posts
- Rakeable panel available up to 40°
Panel Height: 1200mm
Panel Length: 2330mm
Horizontal Rails: 50x25mm
Vertical Bars: 19x19mm
Bar Spacing: 91mm
Post Size: 65x65mm
Rakeable panel available (rakes up to 40°)
Colours:
Black
2. Permeable Fencing
PicketPanel Atlas
PicketPanel aluminium fencing embraces the nostalgia of the traditional picket fence, while providing a refined architectural range of contemporary options suited to the modern environments and todays busy lifestyle. Rakes up to 35°.
Atlas has 50mm wide pickets, spaced at 50mm apart, resulting in 50% permeability.
Indicative lineal metre price*:
From $155.63
Includes posts and associated fixings.
- Traditional picket design manufactured with powder coated aluminium
- Available in 950mm, 1200mm, 1500mm and 1800m high
- Fully raking design for sloping ground
- Matching gates available
- F4 compliant (refer to PS1)
- 50% permeability
Panel Height: 950, 1200, 1500, 1800mm
Panel Length: 2430mm
Picket Size: 50x16mm
Picket Spacings: 50mm
Post Size: 50x50mm
Rakes up to 35°
Colours:
Black
Frost
PicketPanel Juno
PicketPanel aluminium fencing embraces the nostalgia of the traditional picket fence, while providing a refined architectural range of contemporary options suited to the modern environments and todays busy lifestyle. Rakes up to 35°.
Juno has 70mm wide pickets, spaced at 30mm apart, resulting in 30% permeability.
Indicative lineal metre price*:
From $192.40
Includes posts and associated fixings.
- Traditional picket design manufactured with powder coated aluminium
- Available in 950mm, 1200mm, 1500mm and 1800m high
- Fully raking design for sloping ground
- Matching gates available
- F4 compliant (refer to PS1)
- 30% permeability
Panel Height: 950, 1200, 1500, 1800mm
Panel Length: 2430mm
Picket Size: 70x16mm
Picket Spacings: 30mm
Post Size: 65x65mm
Rakes up to 35°
Colours:
Black
Frost

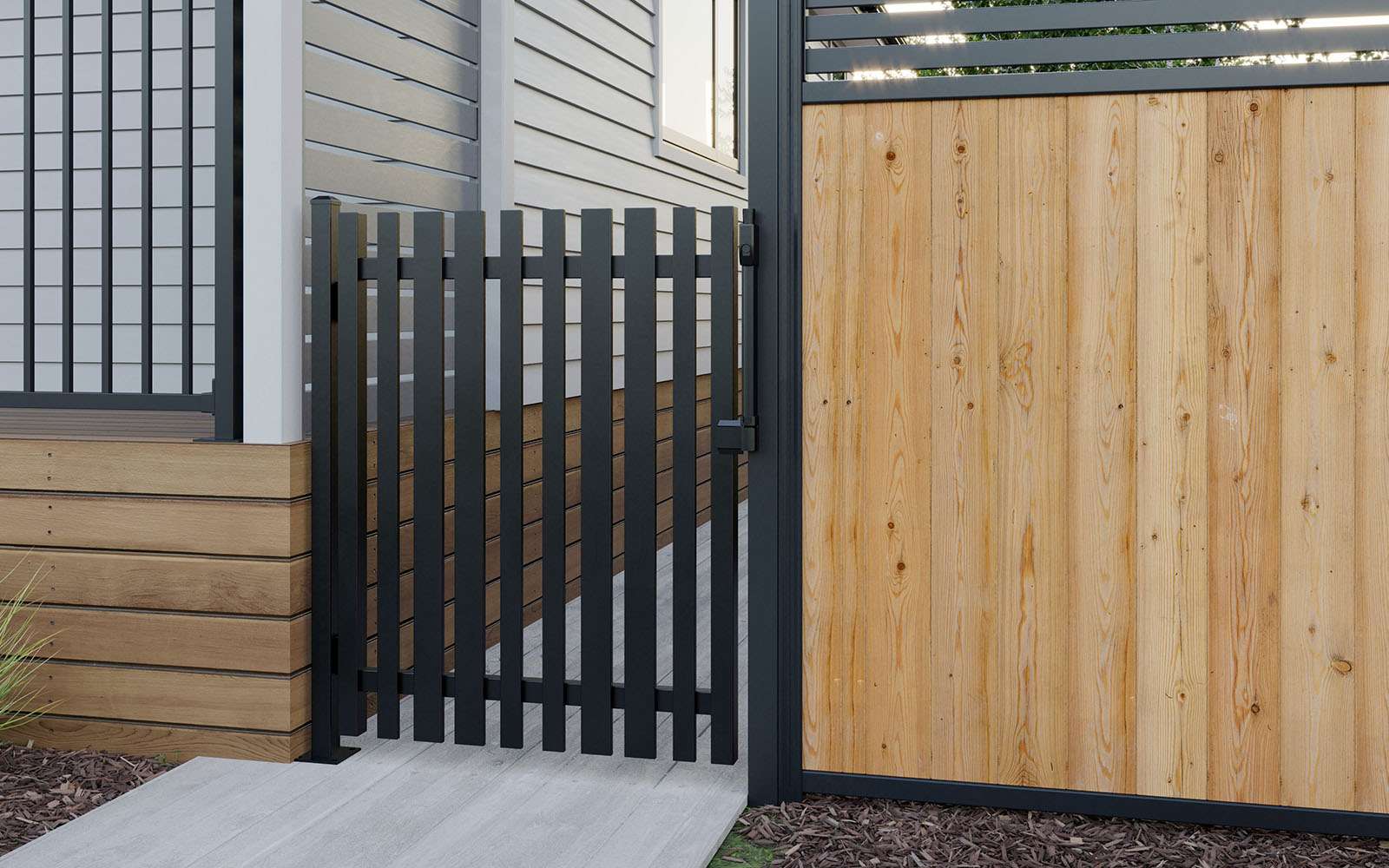

PicketPanel Opus
PicketPanel aluminium fencing embraces the nostalgia of the traditional picket fence, while providing a refined architectural range of contemporary options suited to the modern environments and todays busy lifestyle. Rakes up to 35°.
Opus has 50mm and 70mm wide alternating pickets, spaced at 40mm and 50mm apart, resulting in 40% permeability.
Indicative lineal metre price*:
From $174.10
Includes posts and associated fixings.
- Traditional picket design manufactured with powder coated aluminium
- Available in 950mm, 1200mm, 1500mm and 1800m high
- Fully raking design for sloping ground
- Matching gates available
- F4 compliant (refer to PS1)
- 40% permeability
Panel Height: 950, 1200, 1500, 1800mm
Panel Length: 2430mm
Picket Size: 50×16 & 70x16mm
Picket Spacings: 40 & 50mm
Post Size: 50x50mm
Rakes up to 35°
Colours:
Black
Frost
DuraPanel Delta
When less is more! A simple design with single top and bottom rail makes Delta a popular choice for pools and front boundary fences.
For a durable and cost-effective solution for landscape fencing, swimming pool fencing, and school safety, we bring you our DuraPanel Delta fence. Designed to comply with all fence safety regulations, Delta will enhance your property, protect your family, and your home.
Rakeable panel available (rakes up to 35°).
Indicative lineal metre price*:
From $109.50
Includes posts and associated fixings.
- Square verticals and horizontals for additional strength
- Suited for Balustrade use when fitted to 1200mm minimum
- Producer Statement available for download
- Stocked gates available
- Custom gates or panels available to be fabricated
- Can be used with 50x50mm or 65x65mm posts
- Rakeable panel available up to 35°
Panel Height: 950, 1200mm
Panel Length: 2250mm
Horizontal Rails: 40x40mm
Vertical Bars: 19x19mm
Bar Spacing: 95mm
Post Size: 50x50mm
Rakeable panel available (rakes up to 35°)
Colours:
Black
DuraPanel Titan
Compliant Fall Restraint aluminium fencing at 2400mm posts centre and suitable for wide range of applications.
Titan has been designed to provide a simple, effective system for fall from height protection. A stylish-strong solution, the simple lines of the Titan blend in seamlessly with any landscape.
Rakeable panel available (rakes up to 40°).
Indicative lineal metre price*:
From $144.55
Includes posts and associated fixings.
- Square verticals and rectangle horizontals for additional strength
- Producer Statement available for download
- Stocked gates available
- Custom gates or panels available to be fabricated
- To be used with 65x65mm posts
- Rakeable panel available up to 40°
Panel Height: 1200mm
Panel Length: 2330mm
Horizontal Rails: 50x25mm
Vertical Bars: 19x19mm
Post Size: 65x65mm
Rakeable panel available (rakes up to 40°)
Colours:
Black
3. Semi-Permeable Fencing
SmartWall Slat Top
The combination of two popular products – SmartWall and ColourSlat – forms SmartWall Slat-top!
This blend offers the durability of steel C-posts and rails with the natural beauty and strength of cross-laminated timber palings, providing a low-maintenance and durable solution for securing your home and privacy. All in a modular, fast-install system!
SmartWall timber palings are Micro-pro treated Radiata Pine, making them environmentally friendly and safe for children, unlike the traditional H3.2 CCA treatment of standard timber palings.
SmartWall not only has acoustic properties but also a 65mm wide footprint, making it ideal for tight boundaries with close neighbours and busy areas.
Available in both vertical and horizontal paling design.
Indicative lineal metre price*:
From $233.75
Includes posts and associated fixings.
- Acoustic report available
- Steel surround creates strength and stability
- MicroPro uses a copper-based wood treatment technology
- Supplied in a raw finish ready for staining
- Tongue and groove palings provide a strong connection across the panel
- Palings are kiln dried which results in minimal movement later
- Slat Top allows for extra permeability and sunlight
Panel Height: 1500, 1800, 2100mm
Post Centres Vertical: 2250mm
Post Centres Horizontal: 1830mm
Post Size: 65x65mm
Panel Profile: CLT Laminated Timber
Colours (Posts & Rails):
Black
Thunder
Slate Grey
4. Solid Fencing
SmartWall Horizontal
The ultimate boundary fence – SmartWall combines the strength of steel posts and rails with the natural beauty of cross-laminated timber planks. Quick and easy to install, SmartWall will add value to your home.
SmartWall timber palings are Micro-pro treated Radiata Pine, making them environmentally friendly and safe for children, unlike the traditional H3.2 CCA treatment of standard timber palings.
SmartWall not only has acoustic properties but also a 65mm wide footprint, making it ideal for tight boundaries with close neighbours and busy areas.
Indicative lineal metre price*:
From $177.80
Includes posts and associated fixings.
- Acoustic report available
- Steel surround creates strength and stability
- MicroPro uses a copper-based wood treatment technology
- Supplied in a raw finish ready for staining
- Tongue and groove palings provide a strong connection across the panel
- Palings are kiln dried which results in minimal movement later
Panel Height: 1200, 1500, 1800mm
Post Centres: 1830mm
Post Size: 65x65mm
Panel Profile: CLT Laminated Timber
Colours (Posts & Rails):
Black
Thunder
Slate Grey
SmartWall Vertical
The ultimate boundary fence – SmartWall combines the strength of steel posts and rails with the natural beauty of cross-laminated timber planks. Quick and easy to install, SmartWall will add value to your home.
SmartWall timber palings are Micro-pro treated Radiata Pine, making them environmentally friendly and safe for children, unlike the traditional H3.2 CCA treatment of standard timber palings.
SmartWall not only has acoustic properties but also a 65mm wide footprint, making it ideal for tight boundaries with close neighbours and busy areas.
Indicative lineal metre price*:
From $178.45
Includes posts and associated fixings.
- Acoustic report available
- Steel surround creates strength and stability
- MicroPro uses a copper-based wood treatment technology
- Supplied in a raw finish ready for staining
- Tongue and groove palings provide a strong connection across the panel
- Palings are kiln dried which results in minimal movement later
Panel Height: 1800mm
Post Centres: 2250mm
Post Size: 65x65mm
Panel Profile: CLT Laminated Timber
Colours (Posts & Rails):
Black
Thunder
Slate Grey
5. Fire-Rated Fencing
FlameWall
FlameWall is New Zealand’s first fire-rated fence system, specifically designed to enhance outdoor spaces while ensuring safety and compliance.
Engineered for simple installation, FlameWall is a modular solution tested to an FRR rating of -/60/-, making it ideal for structures, such as garden sheds, to be placed on a legal boundary.
Indicative price per bay (one kit)*:
$982
Includes panels, posts and associated fixings.
- Designed for simple installation
- Can be utilised on both sides of the legal boundary
- Integration with any Boundaryline fence system
- Paintable surface
- Compliant with NZ Building Code C3 and C6
Panel Height: 1800 + min 50mm max 400mm concrete wall
Panel Length: 2200mm
Post Centres: 2180mm
Overall Width: 2230mm
Post Size: 100mm x 50mm
Panel Weight: 45kg per panel
*Must be installed in accordance with the Boundaryline FlameWall PS1 when used for C3 and C6 applications
Technical Drawing Download
FlameWall product page link for PS1 download
For more technical information and resources on FlameWall, please contact [email protected]
Technical Resources
6. Screening
SleekWall Screen Horizontal
Simple and cost-effective, SleekWall Screens are designed to be quick and adaptable to install onsite. These screens offer a practical solution for various applications, providing both functionality and aesthetic appeal.
Where you’re enhancing privacy, creating partitions, or adding a stylish touch to your outdoor space, SleekWall screens deliver an efficient and versatile option. Manufactured from aluminium with a powder coated finish, offering a long-lasting, corrosion-free solution.
Horizontal Screen Kit indicative price*:
$846.22
Includes slats, channels, spacers and associated fixings (excludes posts).
Up to 2400 h x 1830mm w
- Aluminium construction
- Hidden fixings behind covers
- Adjustable slat spacings
- Fully powdercoated system
- Kitset and modular design
- Can be installed to insitu walls or verandah posts
- Option for flanged post fixing if required
Panel Height: up to 2400mm
Panel Width: up to 1800mm
Post Size (flanged): 65x65mm
Panel Profile: Aluminium Slats
Colours:
Black
Thunder
SleekWall Screen Vertical
Simple and cost-effective, SleekWall Screens are designed to be quick and adaptable to install onsite. These screens offer a practical solution for various applications, providing both functionality and aesthetic appeal.
Where you’re enhancing privacy, creating partitions, or adding a stylish touch to your outdoor space, SleekWall screens deliver an efficient and versatile option. Manufactured from aluminium with a powder coated finish, offering a long-lasting, corrosion-free solution.
Vertical Screen Kit indicative price*:
$815.77
Includes slats, channels, spacers and associated fixings (excludes posts).
Up to 2430 h x 1755mm w
- Aluminium construction
- Hidden fixings behind covers
- Adjustable slat spacings
- Fully powdercoated system
- Kitset and modular design
- Can be installed to insitu walls or verandah posts
- Option for flanged post fixing if required
Panel Height: up to 2430mm
Panel Width: up to 1788mm
Post Size (flanged): 65x65mm
Panel Profile: Aluminium Slats
Colours:
Black
Thunder
7. Bin Stores
PicketPanel Atlas Bin Store
PicketPanel aluminium panels embrace the nostalgia of the traditional picket fence, while providing a refined architectural range of contemporary options suited to modern environments and today’s busy lifestyle. PicketPanel is suited to a bin store application with panels that are easy to adjust to fit into any project space.
Atlas has 50mm wide pickets, spaced at 50mm apart, resulting in 50% permeability.
Indicative Atlas Bin Store Kit price*:
3-Sided Bin Store: $1,343.16
4-Sided Bin Store: $1,694.69
Includes panels, posts, gates and hardware (excludes post fixings).
- Self closing hinges and lockable latch options available
- Aluminium construction
- Traditional picket fence design
- Easy installation
- 50% permeability
Panel Height: 1200mm
Picket Size: 50x16mm
Picket Spacings: 50mm
Post Size: 50x50mm
Colours:
Black
Frost
PicketPanel Juno Bin Store
PicketPanel aluminium panels embrace the nostalgia of the traditional picket fence, while providing a refined architectural range of contemporary options suited to modern environments and today’s busy lifestyle. PicketPanel is suited to a bin store application with panels that are easy to adjust to fit into any project space.
Juno has 70mm wide pickets, spaced at 30mm apart, resulting in 30% permeability.
Indicative Juno Bin Store Kit price*:
3-Sided Bin Store: $1,790.10
4-Sided Bin Store: $2,233.54
Includes panels, posts, gates and hardware (excludes post fixings).
- Self closing hinges and lockable latch options available
- Aluminium construction
- Traditional picket fence design
- Easy installation
- 30% permeability
Panel Height: 1200mm
Picket Size: 70x16mm
Picket Spacings: 30mm
Post Size: 65x65mm
Colours:
Black
Frost
Technical Drawing Download
Technical Resources
PicketPanel Opus Bin Store
PicketPanel aluminium panels embrace the nostalgia of the traditional picket fence, while providing a refined architectural range of contemporary options suited to modern environments and today’s busy lifestyle. PicketPanel is suited to a bin store application with panels that are easy to adjust to fit into any project space.
Opus has 50mm and 70mm wide alternating pickets, spaced at 40mm and 50mm apart, resulting in 40% permeability.
Indicative Opus Bin Store Kit price*:
3-Sided Bin Store: $1,441.64
4-Sided Bin Store: $1,839.12
Includes panels, posts, gates and hardware (excludes post fixings).
- Self closing hinges and lockable latch options available
- Aluminium construction
- Traditional picket fence design
- Easy installation
- 40% permeability
Panel Height: 1200mm
Picket Size: 50x16mm & 70x16mm
Picket Spacings: 40 & 50mm
Post Size: 50x50mm
Colours:
Black
Frost
Technical Drawing Download
Technical Resources8. Gates
DuraPanel Delta Kitset Gate
When less is more! A simple design with single top and bottom rail makes Delta a popular choice.
Indicative Gate Kitset price*:
$400.69
Includes posts and gate hardware.
- Available in 950mm and 1200mm high
- Can be made up to 1160mm wide – fully adjustable onsite
- Powder coated aluminium
- Self-closing hinges and child proof latch
Gate Height: 950, 1200mm
Gate Length: up to 1160mm
Horizontal Rail: 40x40mm
Vertical Bars: 19x19mm
Bar Spacing: 91mm
Gate Stile: 50×50 or 65x65mm
Colours:
Black
DuraPanel Polo Kitset Gate
The design with difference! The extra top rail adds a design feature providing a great looking gate for front boundaries and balustrades.
Indicative Gate Kitset price*:
$488.05
Includes posts and gate hardware.
- Available in 1200mm, 1500mm and 1800m heights
- Can be made up to 1160mm wide – fully adjustable onsite
- Powder coated aluminium
- Self-closing hinges and child proof latch
Gate Height: 1200, 1500, 1800mm
Gate Length: up to 1160mm
Horizontal Rail: 40x40mm
Vertical Bars: 19x19mm
Bar Spacing: 91mm
Gate Stile: 50×50 or 65x65mm
Colours:
Black
PicketPanel Atlas Kitset Gate
Simple and straight forward! PicketPanel Atlas incorporates a 50mm wide picket with a 50mm gap to provide a 50% permeability rating. Ideal for street facing fences required to meet minimum permeability requirements.
Indicative Gate Kitset price*:
$479.59
Includes posts and gate hardware.
- Available in 950mm, 1200mm, 1500mm and 1800m high
- Can be made up to 1250mm wide – fully adjustable onsite
- Traditional picket design manufactured with powder coated aluminium
Gate Height: 1200mm
Gate Length: 1250mm
Picket Size: 50x16mm
Picket Spacings: 50mm
Gate Stile: 50x50mm
Colours:
Black
Frost
PicketPanel Juno Kitset Gate
Modern and bold! PicketPanel Juno incorporates a 70mm wide picket with a 30mm gap to provide a less permeable gate where privacy is key. The 30% permeability rating of Juno is ideal for internal fences, gates, screening and more.
Indicative Gate Kitset price*:
$588.57
Includes posts and gate hardware.
- Available in 950mm, 1200mm, 1500mm and 1800m high
- Can be made up to 1250mm wide – fully adjustable onsite
- Traditional picket design manufactured with powder coated aluminium
Gate Height: 1200mm
Gate Length: 1180mm
Picket Size: 70x16mm
Picket Spacings: 30mm
Gate Stile: 75x50mm
Colours:
Black
Frost
PicketPanel Opus Kitset Gate
Variability is good! Combining a mix of both 50mm and 70mm pickets with variable spacings from 30-50mm to give a 40% permeability rating. PicketPanel Opus provides a unique design just a little out of the ordinary.
Indicative Gate Kitset price*:
$502.96
Includes posts and gate hardware.
- Available in 950mm, 1200mm, 1500mm and 1800m high
- Can be made up to 1250mm wide – fully adjustable onsite
- Traditional picket design manufactured with powder coated aluminium
Gate Height: 1200mm
Gate Length: 1250mm
Picket Size: 50×16 & 70x16mm
Picket Spacings: 40 & 50mm
Gate Stile: 50x50mm
Colours:
Black
Frost
*Pricing excludes GST and excludes any allowance for wastage.
Please contact our Sales Team on 0800 003 006 for project quotes or further information on community housing fence gate and screening solutions. Alternatively, you can submit a Contact Us form here.
